**Large multi-modal models for strong performance and efficient deployment** [ไธญๆ–‡](./README_zh.md) | English

MiniCPM-V 2.0 ๐Ÿค— ๐Ÿค– | OmniLMM-12B ๐Ÿค— ๐Ÿค–

**MiniCPM-V** and **OmniLMM** are a family of open-source large multimodal models (LMMs) adept at vision & language modeling. The models process images and text inputs and deliver high-quality text outputs. We release two featured versions that are targeted at **strong performance and efficient deployment**: - **MiniCPM-V 2.8B**: State-of-the-art end-side large multimodal models. Our latest MiniCPM-V 2.0 can accept 1.8 million pixels (e.g., 1344x1344) images at any aspect ratio, and is adept at OCR capability. It achieves comparable performance with Gemini Pro in understanding scene-text and matches GPT-4V in preventing hallucinations. - **OmniLMM 12B**: The most capable version with leading performance among comparable-sized models on multiple benchmarks. The model also achieves state-of-the-art performance in trustworthy behaviors, with even less hallucination than GPT-4V. ## Contents - [MiniCPM-V 2.8B](#minicpm-v-28b) - [OmniLMM-12B](#omnilmm-12b) - [Demo](#demo) - [Install](#install) - [Inference](#inference) - [Model Zoo](#model-zoo) - [Multi-turn Conversation](#multi-turn-conversation) - [Inference on Mac](#inference-on-mac) - [Deployment on Mobile Phone](#deployment-on-mobile-phone) - [TODO](#todo) ## MiniCPM-V 2.8B **MiniCPM-V 2.8B** is an efficient version with promising performance for deployment. The model is built based on SigLip-400M and [MiniCPM-2.4B](https://github.com/OpenBMB/MiniCPM/), connected by a perceiver resampler. Our latest version, MiniCPM-V 2.0 has several notable features. - ๐Ÿ”ฅ **State-of-the-art Performance.** MiniCPM-V 2.0 achieves **state-of-the-art performance** on multiple benchmarks (including OCRBench, TextVQA, MME, MMB, MathVista, etc) among models under 7B parameters. It even **outperforms strong Qwen-VL-Chat 9.6B, CogVLM-Chat 17.4B, and Yi-VL 34B on OpenCompass, a comprehensive evaluation over 11 popular benchmarks**. Notably, MiniCPM-V 2.0 shows **strong OCR capability**, achieving **comparable performance to Gemini Pro in scene-text understanding**, and **state-of-the-art performance on OCRBench** among open-source models. - ๐Ÿ† **Trustworthy Behavior.** LMMs are known for suffering from hallucination, often generating text not factually grounded in images. MiniCPM-V 2.0 is **the first end-side LMM aligned via multimodal RLHF for trustworthy behavior** (using the recent [RLHF-V](https://rlhf-v.github.io/) [CVPR'24] series technique). This allows the model to **match GPT-4V in preventing hallucinations** on Object HalBench. - ๐ŸŒŸ **High-Resolution Images at Any Aspect Raito.** MiniCPM-V 2.0 can accept **1.8 million pixels (e.g., 1344x1344) images at any aspect ratio**. This enables better perception of fine-grained visual information such as small objects and optical characters, which is achieved via a recent technique from [LLaVA-UHD](https://arxiv.org/pdf/2403.11703.pdf). - โšก๏ธ **High Efficiency.** MiniCPM-V 2.0 can be **efficiently deployed on most GPU cards and personal computers**, and **even on end devices such as mobile phones**. For visual encoding, we compress the image representations into much fewer tokens via a perceiver resampler. This allows MiniCPM-V 2.0 to operate with **favorable memory cost and speed during inference even when dealing with high-resolution images**. - ๐Ÿ™Œ **Bilingual Support.** MiniCPM-V 2.0 **supports strong bilingual multimodal capabilities in both English and Chinese**. This is enabled by generalizing multimodal capabilities across languages, a technique from [VisCPM](https://arxiv.org/abs/2308.12038) [ICLR'24]. ### Evaluation

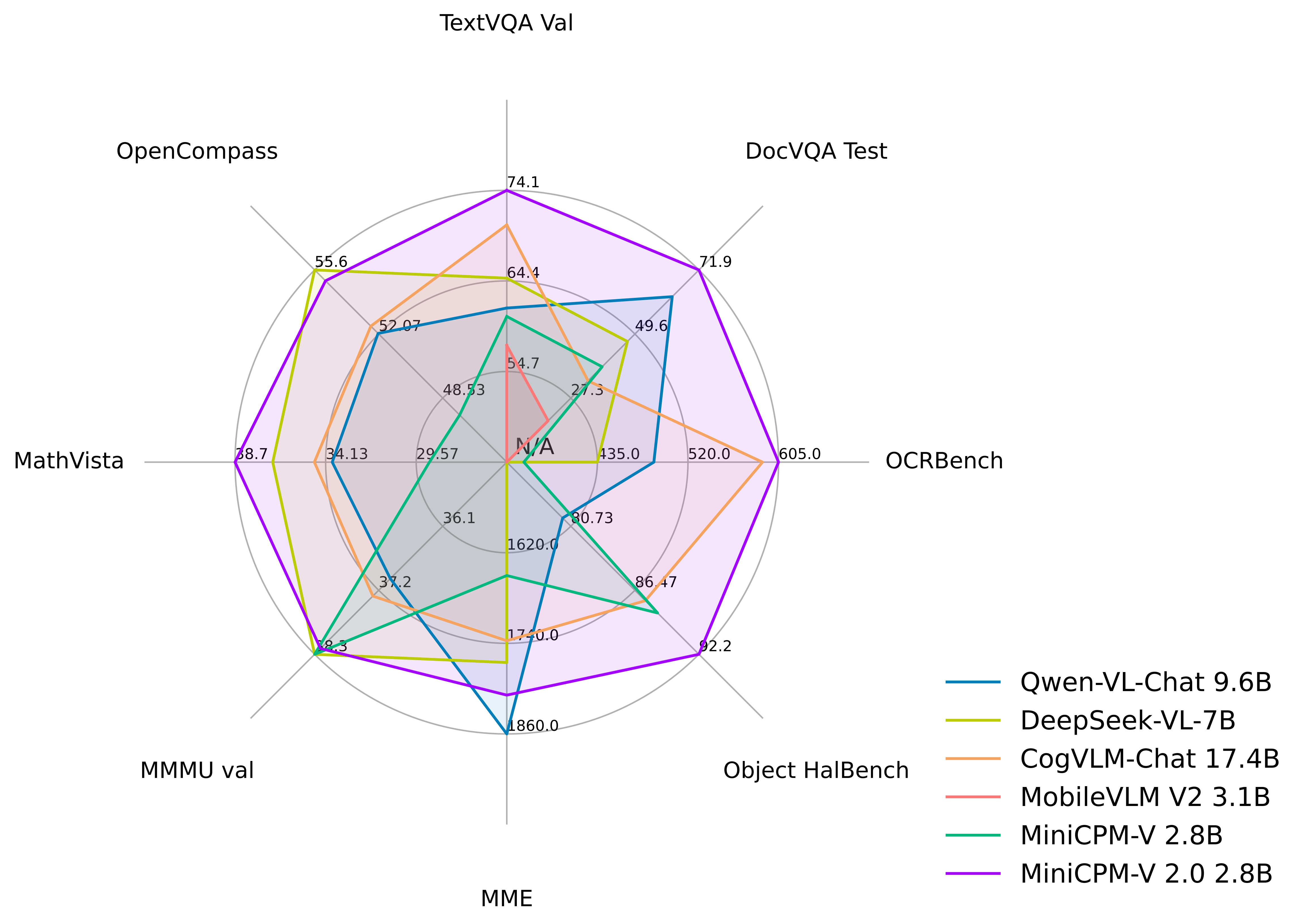

Click to view results on TextVQA, DocVQA, OCRBench, OpenCompass, MME, MMBench, MMMU, MathVista, LLaVA Bench, Object HalBench.
Model Size TextVQA val DocVQA test OCRBench OpenCompass MME MMB dev(en) MMB dev(zh) MMMU val MathVista LLaVA Bench Object HalBench
Proprietary models
Gemini Pro Vision - 74.6 88.1 680 63.8 2148.9 75.2 74.0 48.9 45.8 79.9 -
GPT-4V - 78.0 88.4 645 63.2 1771.5 75.1 75.0 53.8 47.8 93.1 86.4 / 92.7
Open-source models 6B~34B
Yi-VL-6B 6.7B 45.5* 17.1* 290 49.3 1915.1 68.6 68.3 40.3 28.8 51.9 -
Qwen-VL-Chat 9.6B 61.5 62.6 488 52.1 1860.0 60.6 56.7 37.0 33.8 67.7 56.2 / 80.0
Yi-VL-34B 34B 43.4* 16.9* 290 52.6 2050.2 71.1 71.4 45.1 30.7 62.3 -
DeepSeek-VL-7B 7.3B 64.7* 47.0* 435 55.6 1765.4 74.1 72.8 38.3 36.8 77.8 -
TextMonkey 9.7B 64.3 66.7 558 - - - - - - - -
CogVLM-Chat 17.4B 70.4 33.3* 590 52.5 1736.6 63.7 53.8 37.3 34.7 73.9 73.6 / 87.4
Open-source models 1B~3B
DeepSeek-VL-1.3B 1.7B 58.4* 37.9* 413 46.0 1531.6 64.0 61.2 33.8 29.4 51.1 -
MobileVLM V2 3.1B 57.5 19.4* - - 1440.5(P) 63.2 - - - - -
Mini-Gemini 2.2B 56.2 34.2* - - 1653.0 59.8 - 31.7 - - -
MiniCPM-V 2.8B 60.6 38.2 366 47.6 1650.2 67.9 65.3 38.3 28.9 51.3 78.4 / 88.5
MiniCPM-V 2.0 2.8B 74.1 71.9 605 55.0 1808.6 69.6 68.1 38.2 38.7 69.2 85.5 / 92.2
* We evaluate the officially released checkpoint by ourselves.
### Examples

We deploy MiniCPM-V 2.0 on end devices. The demo video is the raw screen recording on a Xiaomi 14 Pro without edition.

### MiniCPM-V 1.0 Please see the info about MiniCPM-V 1.0 [here](./minicpm_v1.md). ## OmniLMM-12B **OmniLMM-12B** is the most capable version. The model is built based on EVA02-5B and Zephyr-7B-ฮฒ, connected with a perceiver resampler layer, and trained on multimodal data in a curriculum fashion. The model has three notable features: - ๐Ÿ”ฅ **Strong Performance.** OmniLMM-12B achieves **leading performance** among models with comparable sizes, surpassing established LMMs on multiple benchmarks (including MME, MMBench, SEED-Bench, etc). The model also endows rich multi-modal world knowledge. - ๐Ÿ† **Trustworthy Behavior.** LMMs are known for suffering from hallucination, often generating text that is not factually grounded in images (e.g., faithfully describing non-existing objects in images). OmniLMM-12B is **the first state-of-the-art open-source LMM aligned via multimodal RLHF for trustworthy behavior** (using the recent [RLHF-V](https://rlhf-v.github.io/) technique). It **ranks #1** among open-source models on [MMHal-Bench](https://huggingface.co/datasets/Shengcao1006/MMHal-Bench), and **outperforms GPT-4V** on [Object HalBench](https://arxiv.org/abs/2312.00849). - ๐Ÿ•น **Real-time Multimodal Interaction.** We combine the OmniLMM-12B and GPT-3.5 (text-only) into a **real-time multimodal interactive assistant**. The assistant accepts video streams from the camera and speech streams from the microphone and emits speech output. While still primary, we find the model can **replicate some of the fun cases shown in the Gemini Demo video, without any video edition**. ### Evaluation
Click to view results on MME, MMBench, MMMU, MMBench, MMHal-Bench, Object HalBench, SeedBench, LLaVA Bench, MathVista.
Model Size MME MMB dev (en) MMMU val MMHal-Bench Object HalBench SeedBench-I MathVista LLaVA Bench
GPT-4Vโ€  - 1771.5 75.1 56.8 3.53 / 70.8 86.4 / 92.7 71.6 47.8 93.1
Qwen-VL-Plusโ€  - 2183.4 66.2 45.2 - - 65.7 36.0 73.7
Yi-VL 6B 6.7B 1915.1 68.6 40.3 - - 67.5 28.8 51.9
Qwen-VL-Chat 9.6B 1860.0 60.6 35.9 2.93 / 59.4 56.2 / 80.0 64.8 33.8 67.7
CogVLM-Chat 17.4B 1736.6 63.7 32.1 2.68 / 52.1 73.6 / 87.4 68.8 34.7 73.9
LLaVA 1.5 13.6B 1808.4 68.2 36.4 2.71 / 51.0 53.7 / 77.4 68.1 26.4 64.6
OmniLMM-12B 11.6B 1935.8 71.6 40.7 3.45 / 68.8 90.3 / 95.5 71.1 34.9 72.0
โ€ : Proprietary models
### Examples

We combine the OmniLMM-12B and GPT-3.5 (text-only) into a **real-time multimodal interactive assistant**. Video frames are described in text using OmniLMM-12B, and ChatGPT 3.5 (text-only) is employed to generate response according to the descriptions and user prompts. The demo video is a raw recording without edition.
## Demo Click here to try out the Demo of [MiniCPM-V 2.0](http://120.92.209.146:80/) and [OmniLMM-12B](http://120.92.209.146:8081). ## Install 1. Clone this repository and navigate to the source folder ```bash git clone https://github.com/OpenBMB/MiniCPM-V.git cd MiniCPM-V ``` 2. Create conda environment ```Shell conda create -n MiniCPM-V python=3.10 -y conda activate MiniCPM-V ``` 3. Install dependencies ```shell pip install -r requirements.txt ``` ## Inference ### Model Zoo | Model | Description | Download Link | |:----------------------|:-------------------|:---------------:| | MiniCPM-V 2.0 | The latest version for state-of-the-art end-side capabilities with high efficiency. | [๐Ÿค—](https://huggingface.co/openbmb/MiniCPM-V-2)    [](https://modelscope.cn/models/OpenBMB/MiniCPM-V-2/files) | | MiniCPM-V | The first version of MiniCPM-V. | [๐Ÿค—](https://huggingface.co/openbmb/MiniCPM-V)    [](https://modelscope.cn/models/OpenBMB/MiniCPM-V/files) | | OmniLMM-12B | The most capable version with leading performance. | [๐Ÿค—](https://huggingface.co/openbmb/OmniLMM-12B)    [](https://modelscope.cn/models/OpenBMB/OmniLMM-12B/files) | ### Multi-turn Conversation Please refer to the following codes to run `MiniCPM-V` and `OmniLMM`.
```python import torch from chat import OmniLMMChat, img2base64 torch.manual_seed(0) chat_model = OmniLMMChat('openbmb/MiniCPM-V-2') # or 'openbmb/OmniLMM-12B' im_64 = img2base64('./assets/hk_OCR.jpg') # First round chat msgs = [{"role": "user", "content": "Where should I go to buy a camera?"}] inputs = {"image": im_64, "question": json.dumps(msgs)} answer = chat_model.chat(inputs) print(answer) # Second round chat # pass history context of multi-turn conversation msgs.append({"role": "assistant", "content": answer}) msgs.append({"role": "user", "content": "Where is this store in the image?"}) inputs = {"image": im_64, "question": json.dumps(msgs)} answer = chat_model.chat(inputs) print(answer) ``` We can obtain the following results: ``` "You should go to the Canon store for a camera." "The Canon store is located on the right side of the image." ``` ### Inference on Mac
Click to view an example, to run MiniCPM-V 2.0 on ๐Ÿ’ป Mac with MPS (Apple silicon or AMD GPUs). ```python # test.py import torch from PIL import Image from transformers import AutoModel, AutoTokenizer model = AutoModel.from_pretrained('openbmb/MiniCPM-V-2', trust_remote_code=True, torch_dtype=torch.bfloat16) model = model.to(device='mps', dtype=torch.float16) tokenizer = AutoTokenizer.from_pretrained('openbmb/MiniCPM-V-2', trust_remote_code=True) model.eval() image = Image.open('./assets/hk_OCR.jpg').convert('RGB') question = 'Where is this photo taken?' msgs = [{'role': 'user', 'content': question}] answer, context, _ = model.chat( image=image, msgs=msgs, context=None, tokenizer=tokenizer, sampling=True ) print(answer) ``` Run with command: ```shell PYTORCH_ENABLE_MPS_FALLBACK=1 python test.py ```
### Deployment on Mobile Phone Currently MiniCPM-V 2.0 can be deployed on mobile phones with Android and Harmony operating systems. ๐Ÿš€ Try it out [here](https://github.com/OpenBMB/mlc-MiniCPM). ## TODO - [ ] Fine-tuning support - [ ] Local Web-UI deployment - [ ] Code release for real-time interactive assistant ## Model License The code in this repo is released according to [Apache-2.0](https://github.com/OpenBMB/MiniCPM/blob/main/LICENSE) The usage of MiniCPM-V's and OmniLMM's parameters is subject to "[General Model License Agreement - Source Notes - Publicity Restrictions - Commercial License](https://github.com/OpenBMB/General-Model-License/blob/main/้€š็”จๆจกๅž‹่ฎธๅฏๅ่ฎฎ-ๆฅๆบ่ฏดๆ˜Ž-ๅฎฃไผ ้™ๅˆถ-ๅ•†ไธšๆŽˆๆƒ.md)" The parameters are fully open to academic research Please contact cpm@modelbest.cn to obtain written authorization for commercial uses. Free commercial use is also allowed after registration. ## Statement As LMMs, OmniLMMs generate contents by learning a large amount of multimodal corpora, but they cannot comprehend, express personal opinions or make value judgement. Anything generated by OmniLMMs does not represent the views and positions of the model developers We will not be liable for any problems arising from the use of OmniLMM open source models, including but not limited to data security issues, risk of public opinion, or any risks and problems arising from the misdirection, misuse, dissemination or misuse of the model. ## Institutions This project is developed by the following institutions: - [THUNLP](https://nlp.csai.tsinghua.edu.cn/) - [ModelBest](https://modelbest.cn/) - [Zhihu](https://www.zhihu.com/ )
